Depth of anesthesia and sedation monitor MGA-06 buy

Simple and safe

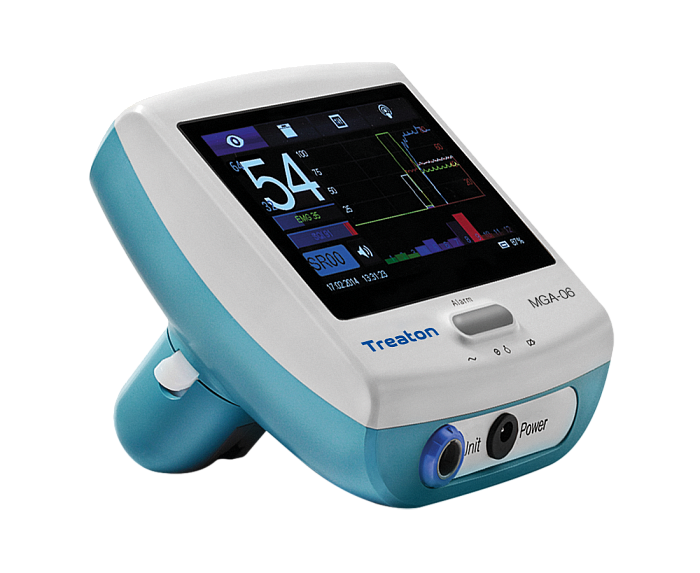

Depth of Anesthesia and sedation monitor MGA-06 is a monitor assessing depth of anesthesia and designed to improve patient safety through long and continuous monitoring of the Brain Activity Index (AI)

Convenient

Small-size
Mobile
Easy fits to any environment due to the reliable clamp
Light weight
No routine maintenance

Accurate monitoring of sedation level

3 ECG-electrodes are placed on the fronto-temporal lobes of the patient

01 /

Anesthesiology, including perioperative period

02 /

Intensive care

03 /

Resuscitation

04 /

Procedural sedation

Technical characteristics

Patient age groups	Adults, pediatric
Display	5" color, touch screen
Measurement method	Data processing of one electroencephalogram lead
Weight of the device	0.8 kg
Power supply	100-240 V, 50/60 Hz Built-in battery at least 2 hours of operation
Displayed parameters	Brain Activity Index EEG Signal Suppression Rate EEG Signal Quality Index Electromyographic component level Electrodes impedance (Z1-Z3)
Trends	AI, EMG 72 hours
Alarms	Visual and sound alarm

With continuously raising requirements to ensuring patient‘s safety, physicians have to provide more careful control of using anesthetics, hypnotic drugs or sedatives

Universality

Operates with inhalation and intravenous anesthetics

Low cost in operation

Kit from 3 typical ECG-electrodes is used for a measurement

Patient safety

Individual selection of sedative doses

User friendly interface

Intuitive interface, sensitive touchscreen

Depth of anesthesia and sedation monitor MGA-06

01 /
02 /
03 /
04 /

Advantages

Interpreting AI (Brain Activity Index) data

According to a generally accepted classification of anesthesia stages.

90–100	Awake
80–90	Anesthesia stage I – light sedation
60–80	Anesthesia stage II – sedation
40–60	Anesthesia stage III – surgical state
30–40	Anesthesia stage IV – deep anesthesia, BS (burst – suppression) patterns emerge
20–30	Anesthesia stage V – deeper anesthesia compared to stage IV, length of suppression episodes may reach 10 seconds
0–10	Anesthesia stage VII – extremely deep anesthesia, suppression episodes constitute 75% and more of the whole signal duration

Interpreting AI (Brain Activity Index) data

To improve patient`s safety

You can use Depth of anesthesia and sedation monitor MGA-06 with Multigas Analyzer AMG-06.

AMG-06 is intended for continuous noninvasive side-stream monitoring of СО₂& anesthetics concentration in inspired and expired gases. The device also determines RSP, apnea, MAC index and measures atmospheric pressure in operating rooms and wards when providing anesthetic support.
