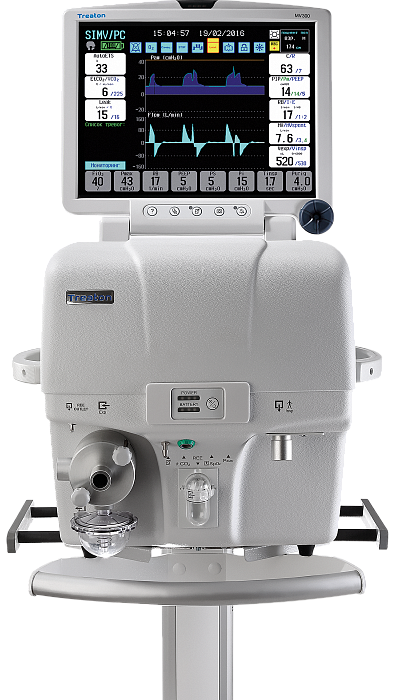

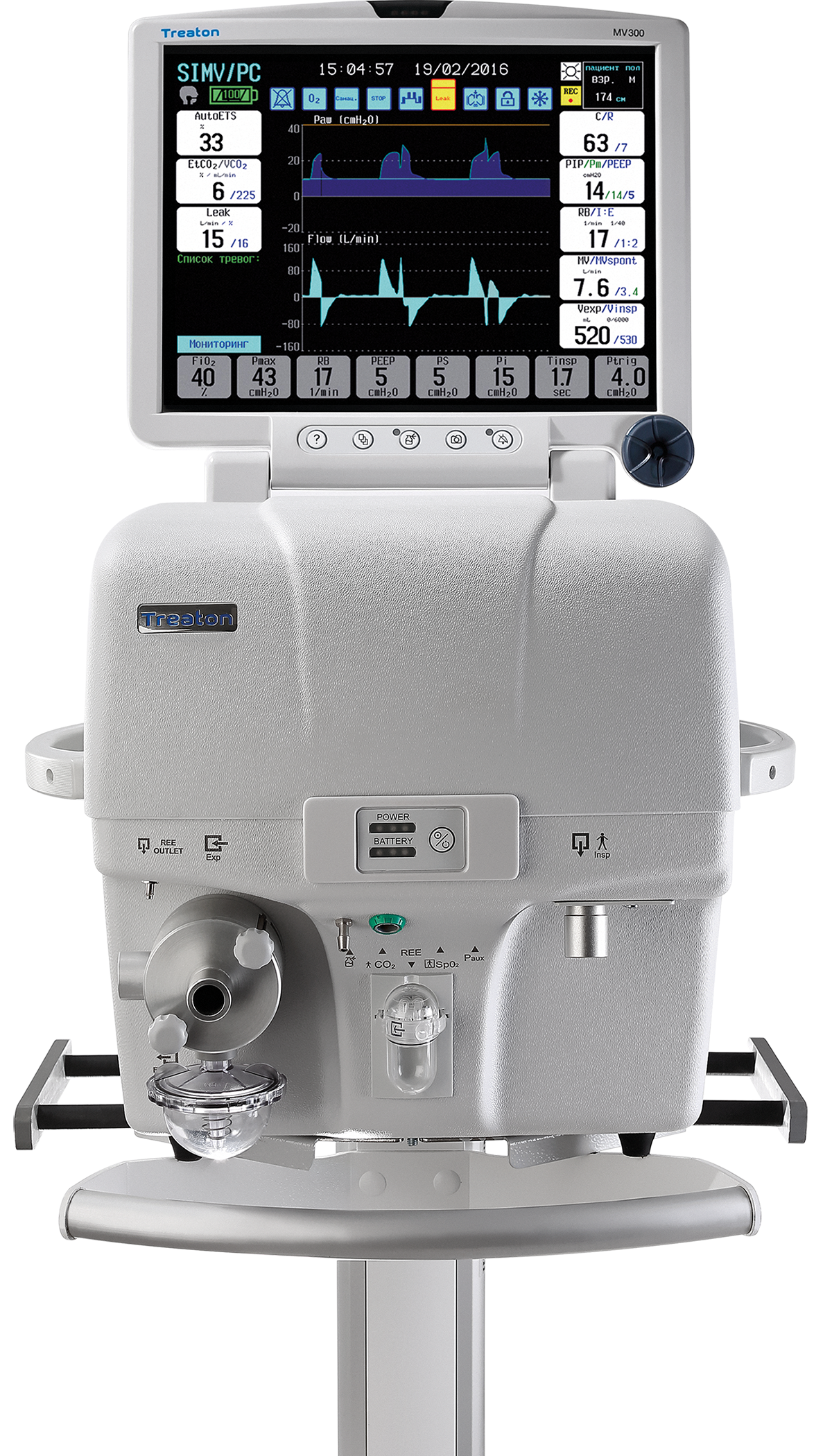

Intensive Care Ventilator ZISLINE MV300 buy

Built-in turbine

Independed from compressed air sources. The turbine does not require special maintenance and ensures the operation for 40 000 hours

Advanced patient monitoring

Mainstream CO₂
Volumetric CO₂
Evaluation of patients metabolic needs
Auxiliary pressure
SpO₂
Respiratory mechanics
Cardiac output by Fick method

13 ventilation modes

Mandatory ventilation modes
Modes of spontaneous breathing
Non-invasive ventilation modes
Intelligent ventilation

01 /

Anesthesiology

02 /

Intensive care

03 /

Resuscitation

Ventilation Parameters

Tidal volume	10–3000 ml
Minute volume	0–60 lpm
Rate of breathing	0–120 lpm
Inspiratory pressure	0–100 H₂O (mbar)
Flow trigger	0.5–20 lpm
Pressure trigger	0.5–20 cmH_₂O (mbar)
I:E ratio	1:99–60:1
Positive end-expiratory pressure	0–50 cmH_₂O (mbar)

Technical Specifications

Power	100–250 V, 50/60 Hz Built-in battery for 4 to 6 hours of independent operation
Input oxygen pressure	0.15–0.6 MPa (1.5–6 bar). It is allowed to use low-pressure oxygen sources with operating pressure range: 0.05–0.15 MPa (0.5–1.5 bar)
Alarms	Visual and sound alarm 3 level of priority
Interfaces	Ethernet for connection to PC, USB
Maximum (peak) flow on inspiration	180 lpm

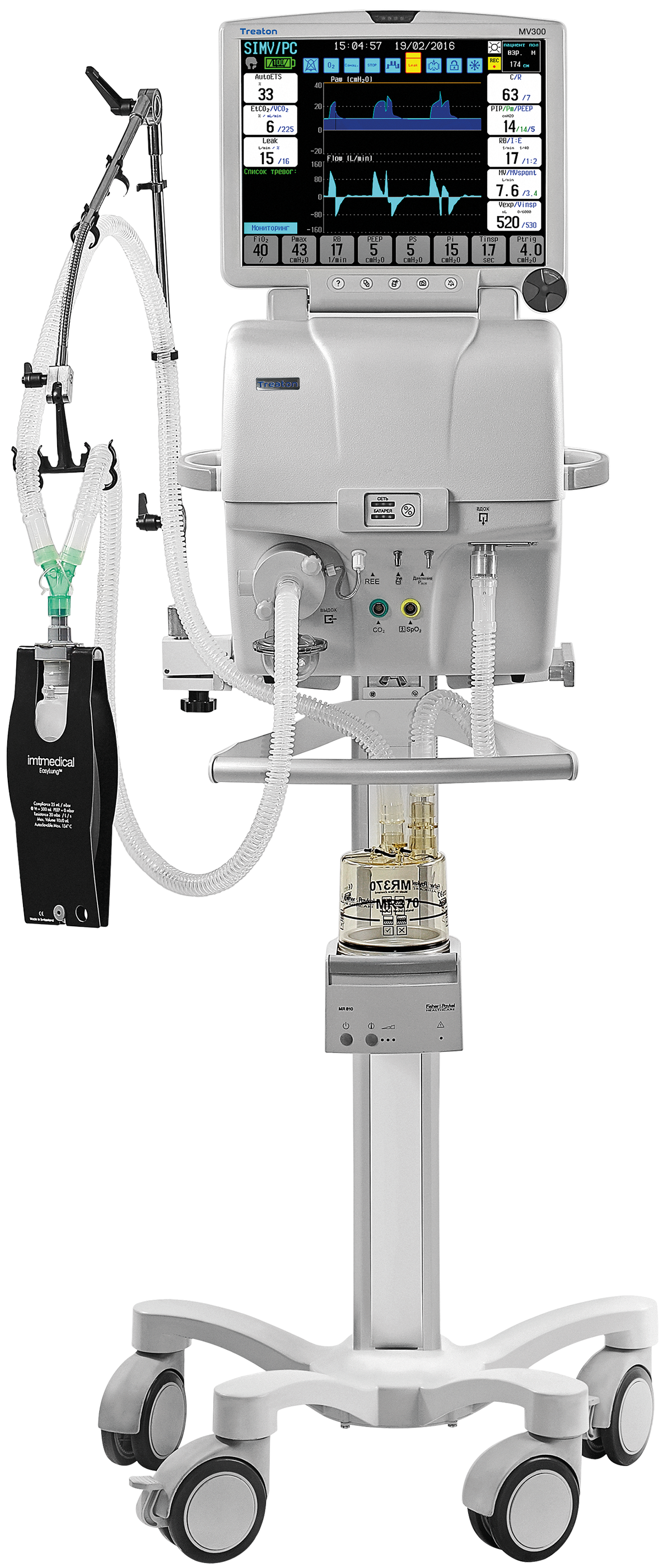

ALL-IN-ONE VENTILATOR

Intelligent ventilation mode iSV

iSV mode provides the target volume of minute ventilation at any level of patient‘s spontaneous respiratory activity. Determined by the patient‘s height and gender.

Battery

For 4 to 6 hours back-up battery

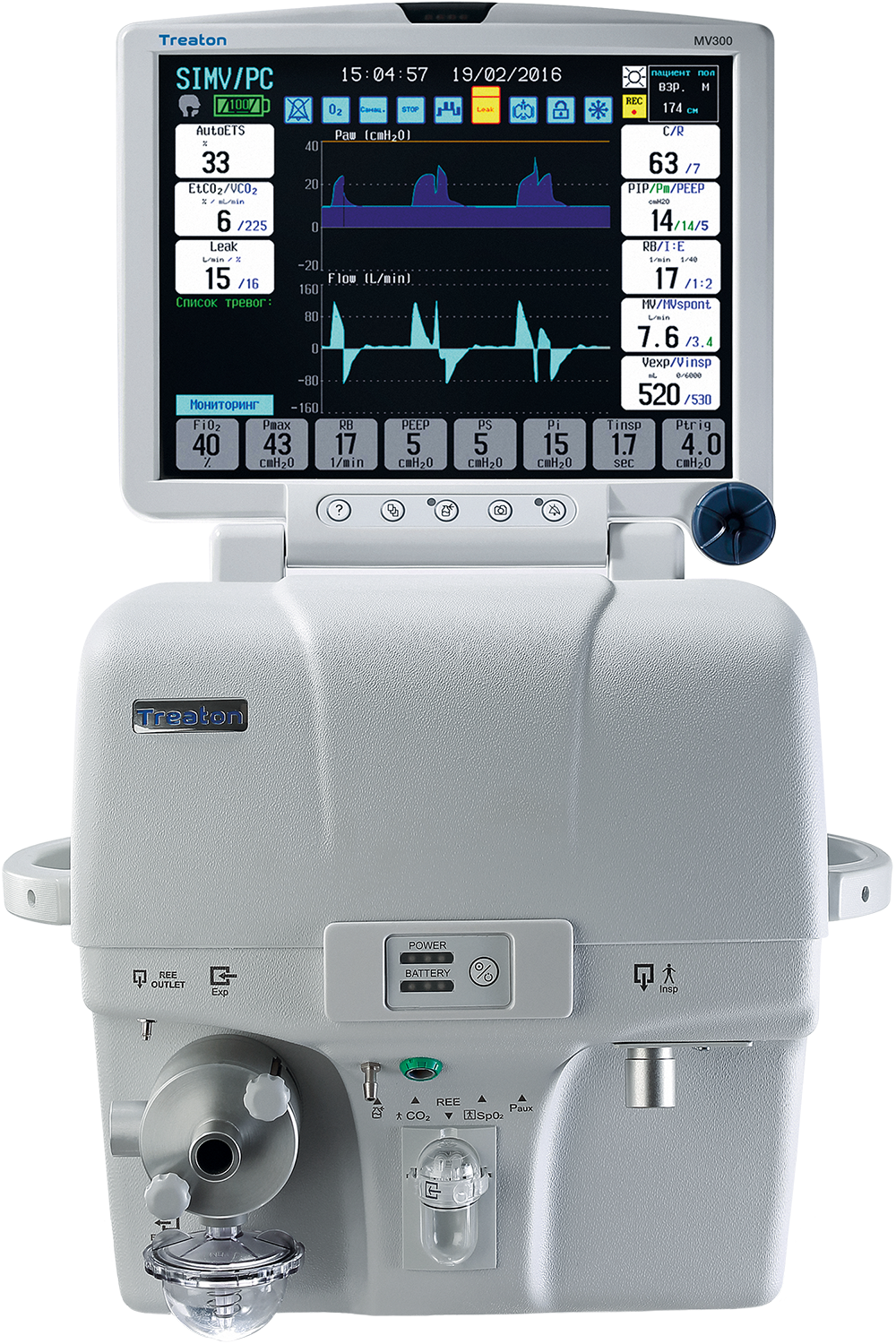

15`` full-color touchscreen

Display can be fully folded for easy transportation

Reliable autoclavable exhalation valve

Ventilator is equipped with exhalation valve, which can be easily disconnected from the device and processed in autoclave. Number of sterilization cycles is unlimited

01 /
02 /
03 /
04 /

Advantages

Capnometry and volumetric capnometry

This monitoring method is recommended for use in intensive care units and operating rooms to improve patient safety.

Capnography allows to assess the endotracheal tube location, the resuscitation effectiveness. This type of monitoring is necessary for patients with increased intracranial pressure.

Volumetric capnometry has additional capabilities:

allows to assess the alveolar ventilation;
tracks the change in physiological dead space at the artificial ventilation.

Auxiliary pressure Paux

An auxiliary pressure channel allows to the health practitioner to obtain valuable practical information. The doctor can measure the pressure directly in the trachea and
esophagus. The pressure in esophagus is equal to the intrapleural pressure.

Among the main principles of protective artificial lung ventilation the PEEP is considered to be an important component for the prevention of atelectotrauma.

P transpulmonary = P alveolar — Ppleural.

Transpulmonary pressure is the only objective criterion for setting up PEEP. Its monitoring allows reducing or eliminating lung injuries during the ventilation.

Extended Respiratory Monitoring

Extended respiratory monitoring allows to set comfortable and safe ventilation parameters in accordance with the respiratory needs of the patient.

Stress index is an indicator of the correct choice of PEEP and the inspiration volume Vt. Its deviation from “1” shows non-optimal choice of ventilation parameters.

Evaluation of patient‘s metabolic needs

The method of indirect calorimetry is considered the “gold standard” of metabolic monitoring.

VO₂	oxygen consumption
VCO₂	carbon dioxide excretion
RQ	respiratory quotient
REE	resting energy expenditure

In addition to directly measuring the actual resting energy expenditure (REE), this method calculates the respiratory quotient (RQ) — the ratio of carbon dioxide release rate to oxygen consumption rate and assess the contribution of each macronutrient to the total metabolism.

Accessories

01 / 02

Angle connector

Conformed to patient monitors and ICU ventilators Treaton

All accessories and consumables

(1)

Documents and manuals

Ventilator Treaton Zisline MV200, MV300

Partner Registration is available for our Distributors and allow you to download our latest Technical Data Sheets, User Manuals, Service Manuals, Certificates and Marketing Materials.

Registration is an easy process. Please click the 'Register' button to begin, fill in the form, and you will be contacted by our International Sales Team within a couple of working days about your registration, User ID and password.

If you are having problems filling out this form, send us an email: info@treat-on.com for assistance.
