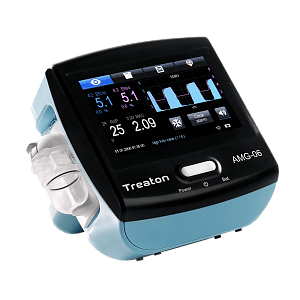

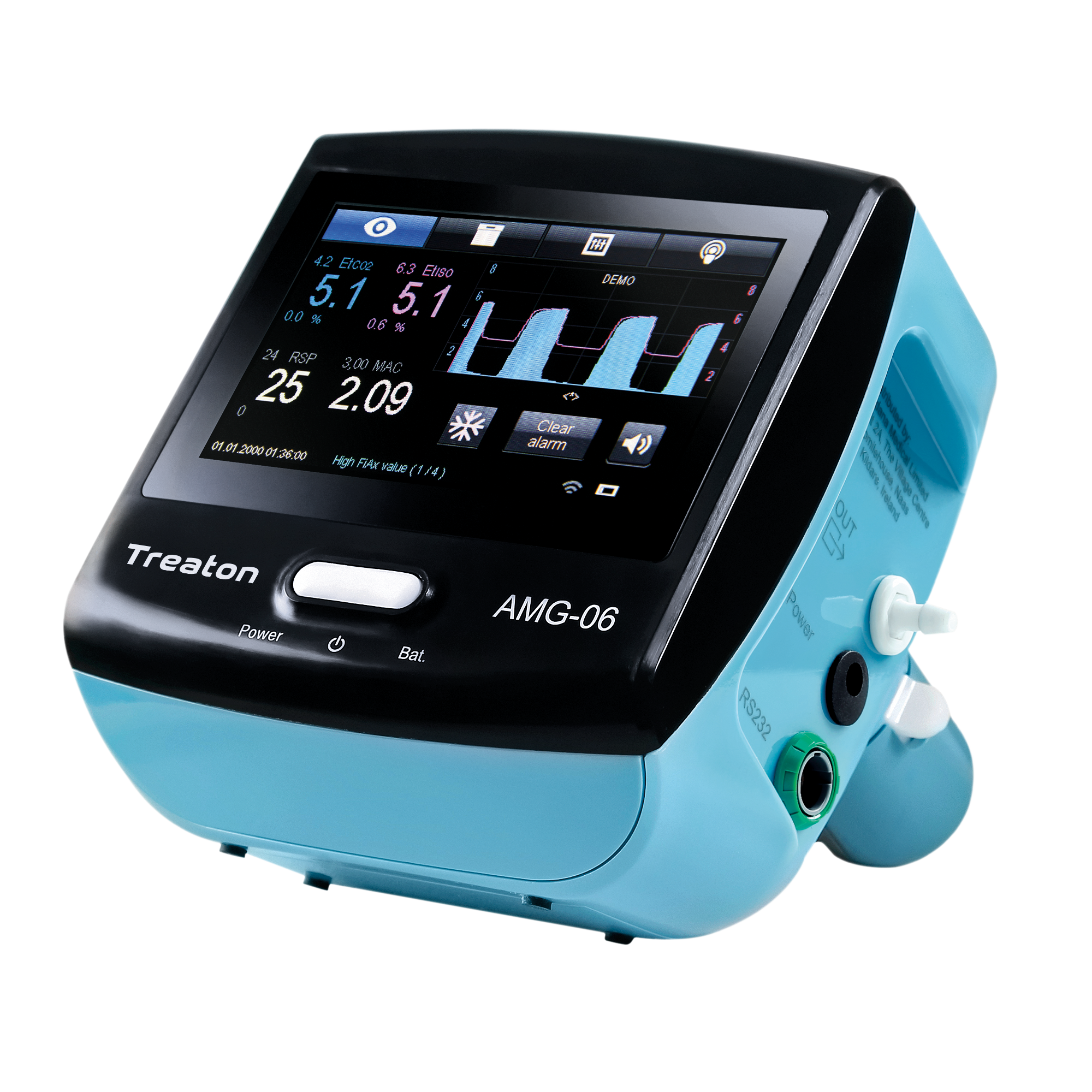

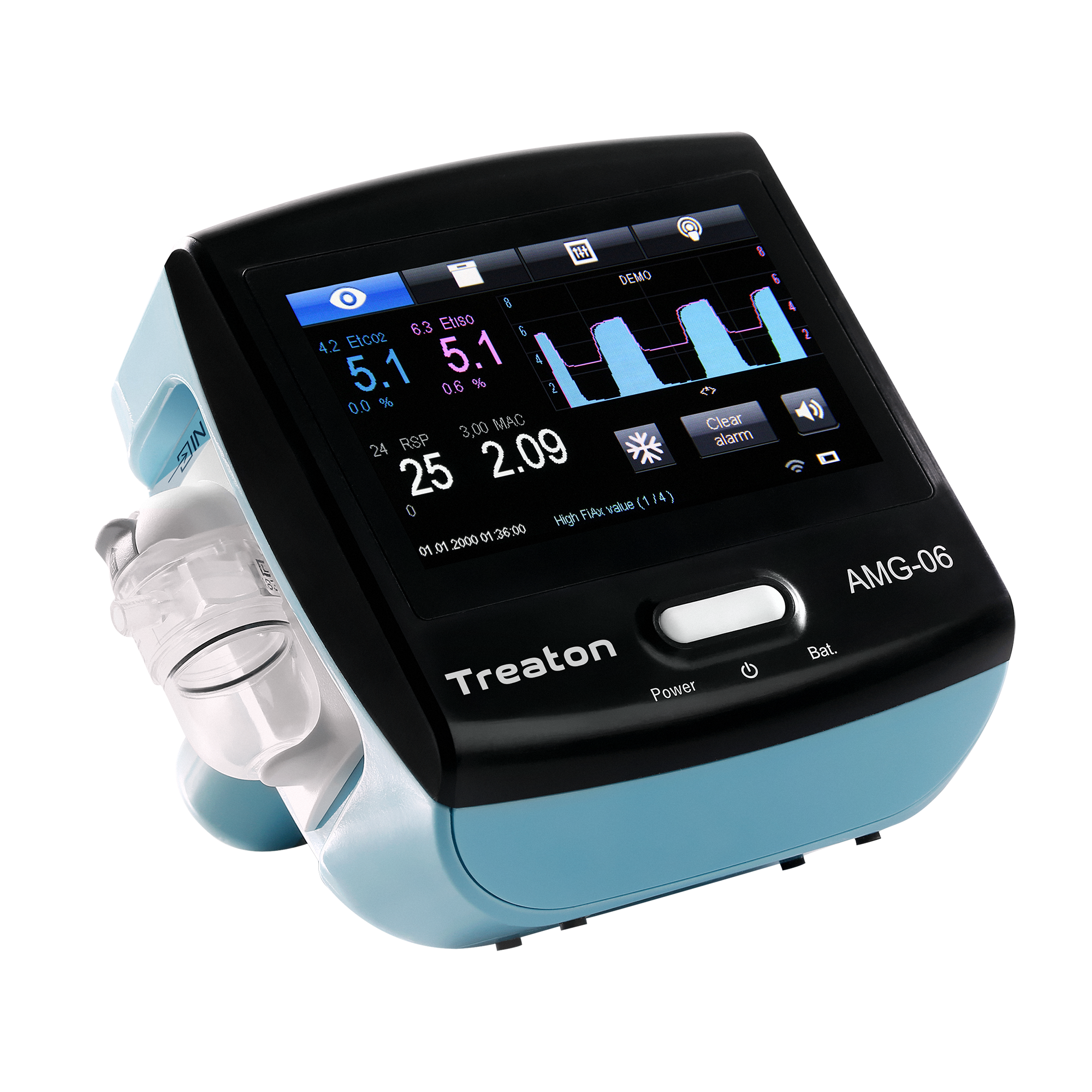

Multigas Analyzer AMG-06

High measurement accuracy
High measurement accuracy
Technology based on the infrared method of measuring, enables to measure anesthetics and CO2 concentration precise and fast due to an in-house high-precision sensor
Flexible concept
Flexible concept
  • Simple design
  • Light weight, compact

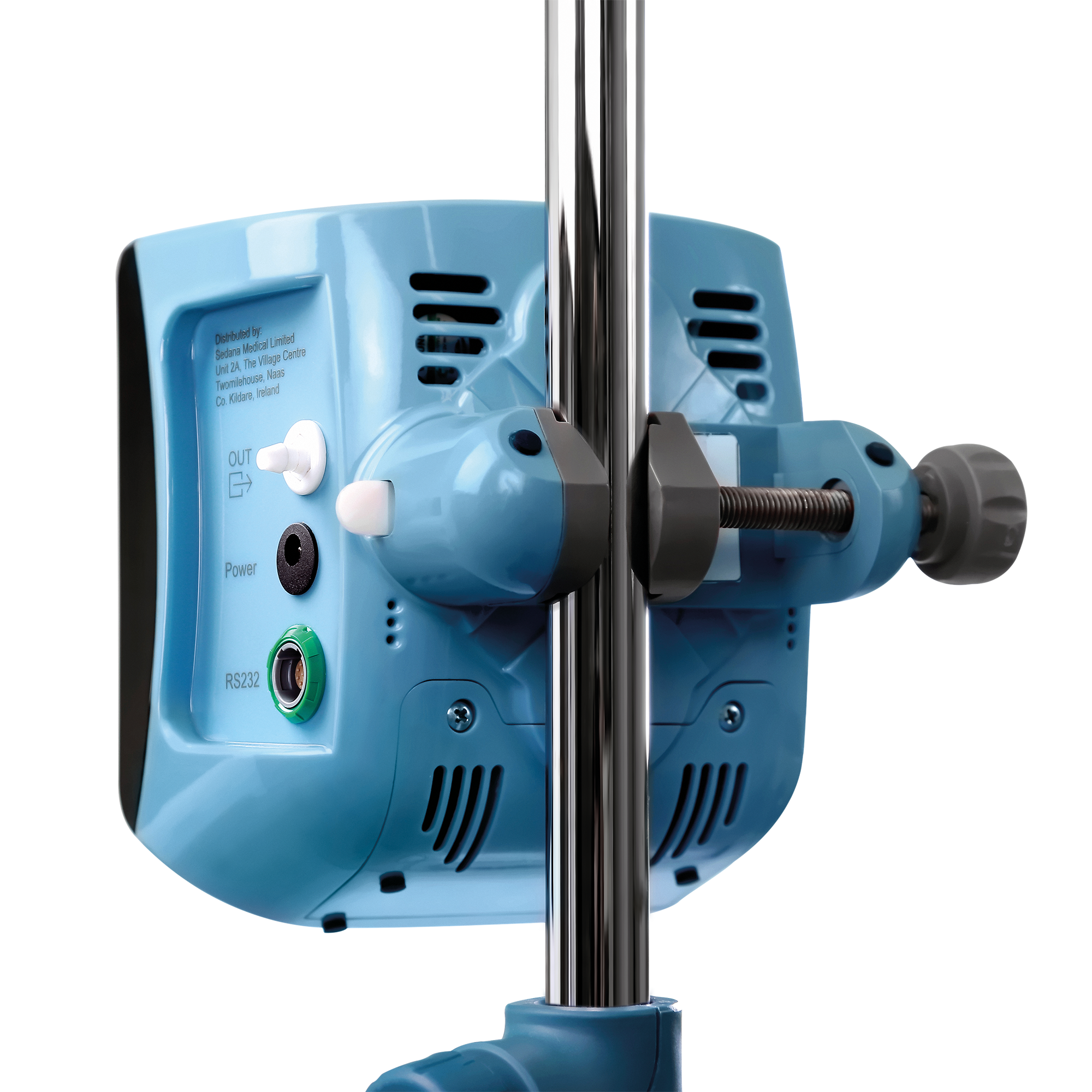

  • Fits to any working environment. Can be fixed on any surface due to its universal mounting system
  • Built-in battery  up to 2 h of operation
Measured gases
Measured gases
  • Isoflurane
  • Sevoflurane
  • Desflurane
  • CO2
Manual selection of the anesthetic type, automatic detection of the incorrect choice

Scope
of application

01 / 05
01 /
Anesthesiology
Anesthesiology
02 /
Intensive care during postoperative period
Intensive care during postoperative period
03 /
Prolonged sedation
Prolonged sedation
04 /
Resuscitation
Resuscitation

Patient age groups

Adults, children from 3 years old

Display

5" color, touch screen

Measurement Non-dispersive infrared (NDIR)
Weight 0.5 kg
Power supply 100-240 V, 50/60 Hz
Displayed parameters
Concentration of CO2, anesthetics in digital and graphical form

Trends    72 hours
Alarms    Visual and sound alarm
3 level of priority

" Created with Sketch. You can equip any type of anesthesia machines by multigas option

Safety for a patient
Automatic detection of installed water trap (adult or neonate version)
User friendly interface
Intuitive interface, sensitive touchscreen
Alarm system
Visual and audible signals, text messages, vibration
Safe use of consumables
The special valve prevents the reverse flow of gas through the sampling tube
Multigas Analyzer AMG-06
  • 01 /
  • 02 /
  • 03 /
  • 04 /

Advantages

To improve patient`s safety
To improve patient`s safety
You can use Depth of anesthesia and sedation monitor MGA-06 with Multigas Analyzer AMG-06.

MGA-06 is a monitor assessing depth of anesthesia and designed to improve patient safety through long and continuous monitoring of the Brain Activity Index (AI).
To improve patient`s safety

Documents and manuals

Multigas Analyzer Treaton AMG-06
EC Certificate AMG-06
