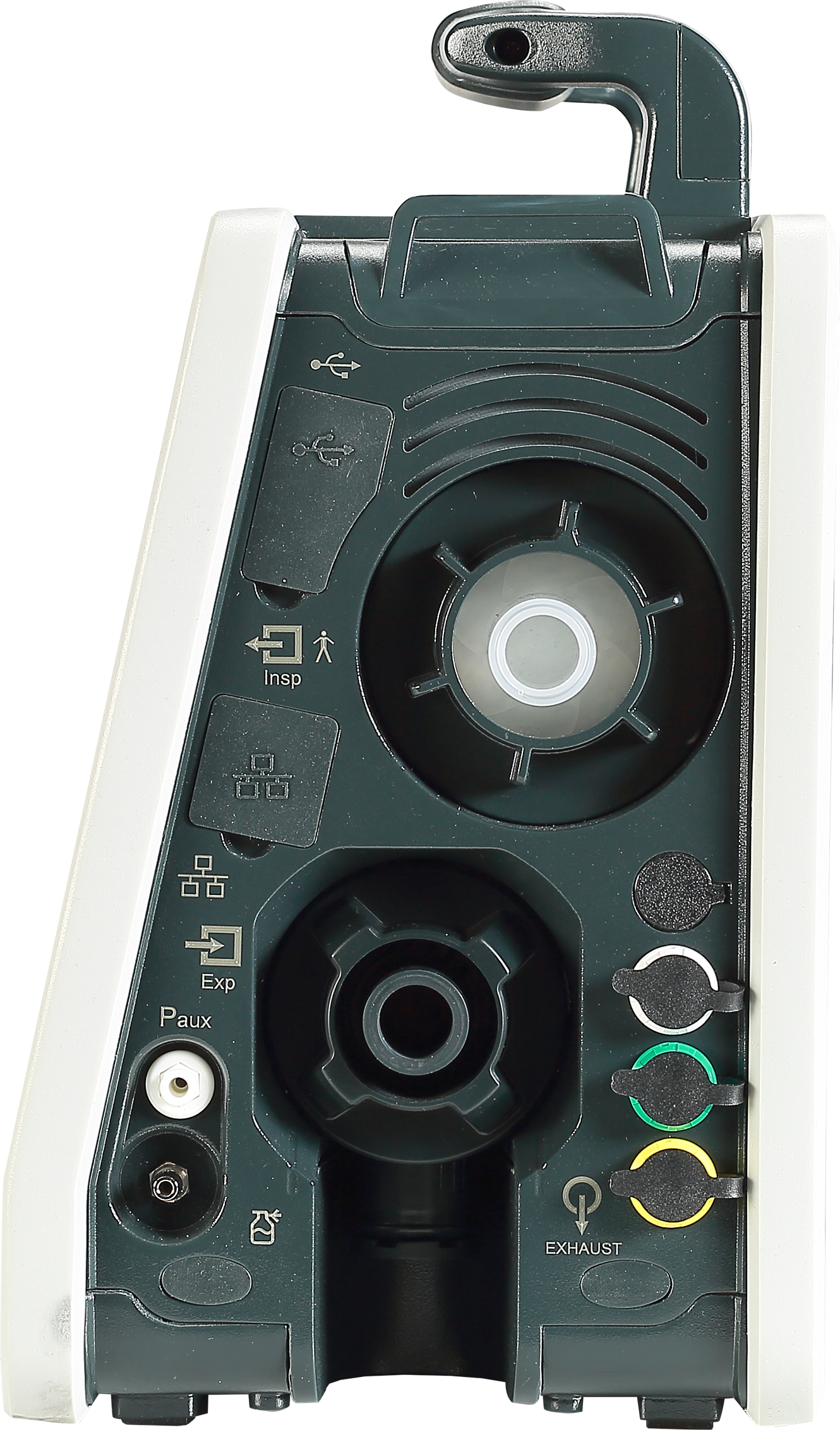

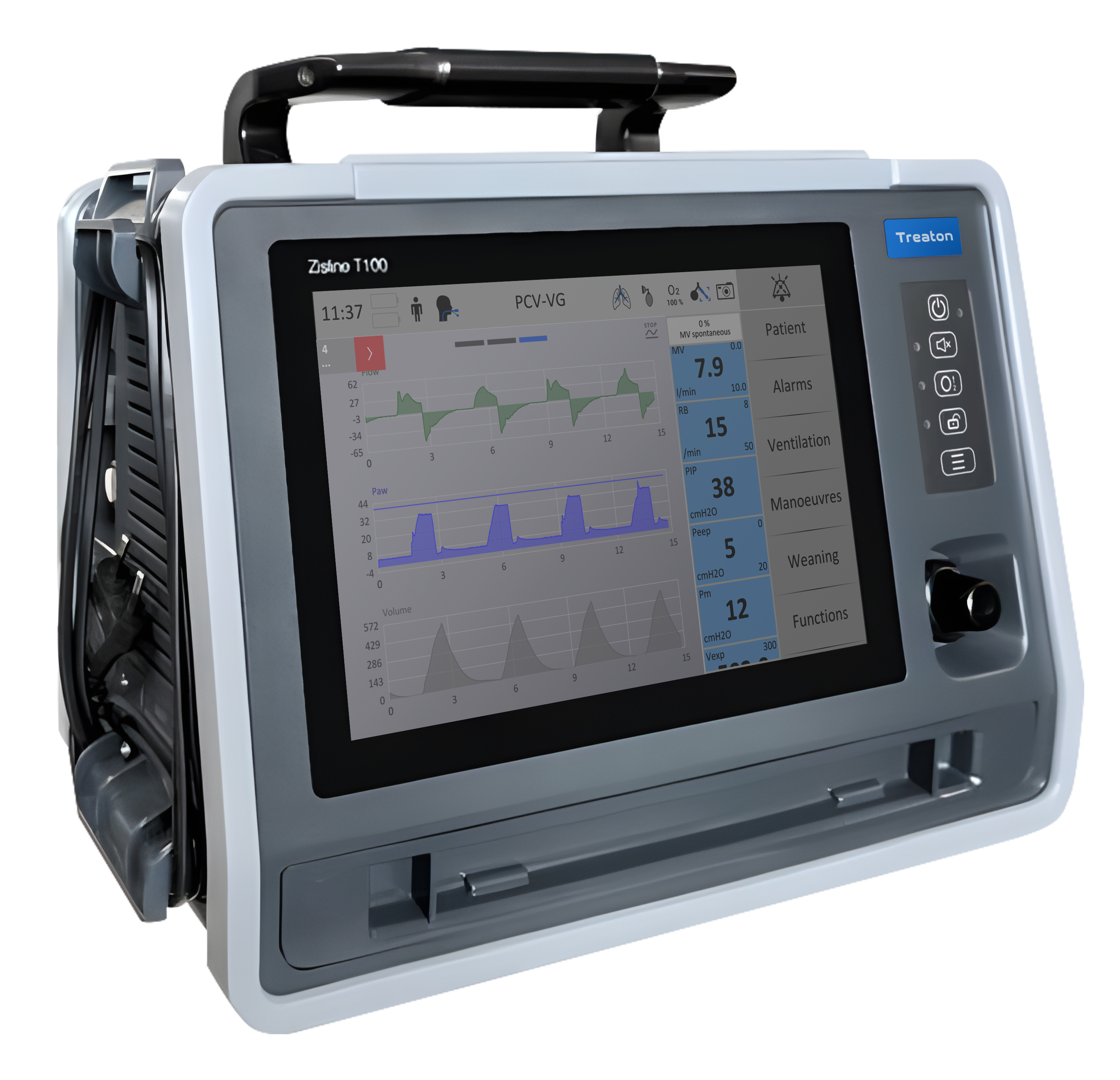

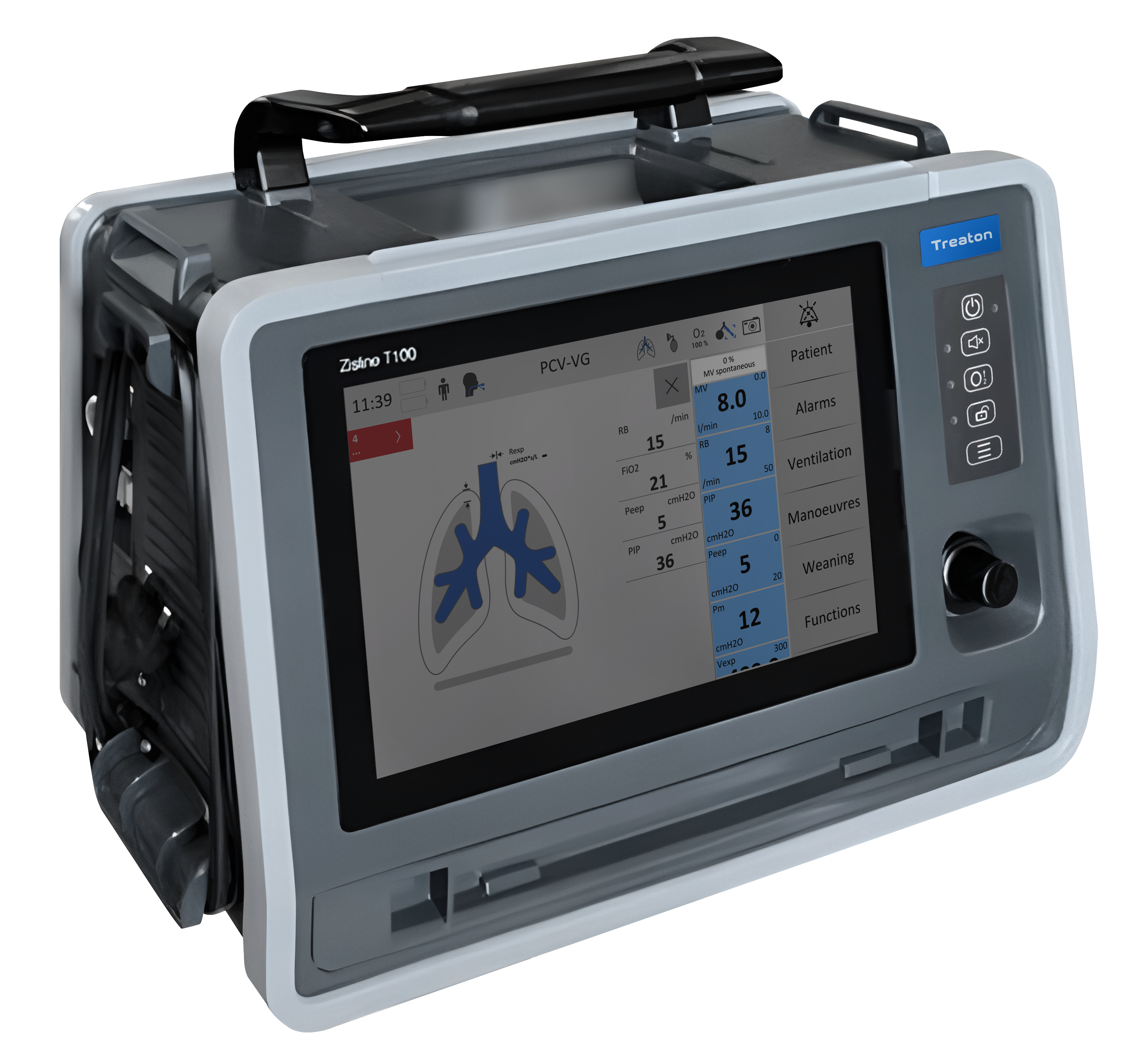

Transport Ventilator Zisline T100
is designed for controlled and assisted
artificial ventilation of adults, children
and neonates, including extremely low
birth weight neonates from 500 g
Proximal flow sensor for neonates
Mainstream CO₂ sensor
SpO₂ sensor
MIS / PDMS data transfer according to ISO 11073
Central O₂ pipeline, cylinders, oxygen concentrator
8 hours of battery life / hot swap battery
Technical Specification
|
Patient categories |
Adults with a tidal volume of: 200–3000 ml; |
|||||||
|
Ventilator settings |
Adults |
Children |
Neonatal |
|
||||
|
Ventilation modes |
Volume-controlled ventilation modes |
|||||||
|
CMV/VCV |
+ |
+ |
+ |
|||||
|
SIMV/VC |
+ |
+ |
+ |
|
||||
|
Pressure-controlled ventilation modes |
|
|||||||
|
CMV/PCV |
+ |
+ |
+ |
|
||||
|
|
BiSTEP |
+ |
+ |
|
|
|||
|
|
SIMV/PC |
+ |
+ |
+ |
||||
|
|
APRV |
+ |
+ |
|
|
|||
|
|
Spontaneous ventilation modes |
|||||||
|
|
CPAP+PS (PSV) |
+ |
+ |
+ |
||||
|
|
CPAP+VS |
+ |
+ |
+ |
||||
|
|
NIV |
+ |
+ |
|
||||
|
|
Hybrid ventilation modes |
|
||||||
|
|
PCV-VG |
+ |
+ |
+ |
||||
|
|
SIMV/DC |
+ |
+ |
+ |
|
|||
|
|
Closed loop / Adaptive modes |
|
||||||
|
|
iSV |
+ |
+ |
|
|
|||
|
Nasal applications (NC) |
HFO2 |
up to 80 L/min |
up to 30 L/min |
|||||
|
nCPAP |
+ |
|||||||
|
niMV |
+ |
|||||||
|
Ventilation rate (Rate) |
Adults |
1–60 breaths/min |
||||||
|
Children |
1–120 breaths/min |
|||||||
|
Neonatal |
5-150 breaths/min |
|||||||
|
Inspiratory time (T insp) |
Adults |
0.2–15 s |
||||||
|
Children/ Neonatal |
0.2 – 3 s |
|||||||
|
Tidal volume (VT) |
Adults with a tidal volume of: 200–3000 ml; children with a tidal volume of: 20–400 ml; neonatal with a tidal volume of: 2–200 ml (*option with proximal flow sensor) |
|||||||
|
I:E ratio |
60:1 up to 1:99 |
|||||||
|
Inspiratory flow (Flow insp) |
0–260 L/min |
|||||||
|
PS Endflow (ETS) |
5–80% |
|||||||
|
Inspiratory pressure (Pinsp) |
Adults: 0 - 100 cmH2O; Children/ Neonatal: 0–60 cmH2O; |
|||||||
|
PEEP |
OFF, 0.5–50 cmH2O |
|||||||
|
Pressure support (PS) |
Adults: 0 - 80 cmH2O; Children/ Neonatal: 0 – 60 cmH2O |
|||||||
|
Pramp rate of the pressure rise |
5–200 cmH2O/s |
|
||||||
|
O2 concentration |
21–100% |
|||||||
|
Flow trigger |
OFF, Adults 1.0–20 L/min; children 0.5–10 L/min; neonatal 0.1–10 L/min |
|||||||
|
Pressure trigger |
OFF, 0.5 –20 cmH2O |
|||||||
|
Tube compensation |
Tube, tracheostomy tube, inspiration, expiration, Degree of compensation 0–100% |
|||||||
|
Automatic Byflow |
5-8 L/min |
|||||||
