- Real-time EEG-based Brain Activity Index (AI) delivers accurate, continuous assessment of anesthesia depth and sedation level
- Prevents Intraoperative Awareness — Significantly reduces the chance of anesthesia awareness—a distressing complication during surgery
- All-Age Compatibility — Validated for use in adults, pediatrics, and neonates, offering universal clinical applicability
- Reduces Drug Consumption — Precise titration of anesthetics lowers medication use—cutting costs and minimizing side effects
- Accelerates Recovery & ICU Discharge — Optimized sedation depth shortens emergence time, mechanical ventilation duration, and ICU stay
Technical Specification
|
Patient age groups |
Adults, pediatrics, neonates |
|
Anesthetics |
Works with both inhaled and intravenous anesthetics |
|
Monitoring parameters |
Brain Activity Index EEG Signal Suppression Rate EEG Signal Quality Index Electromyographic Component Level Electrodes impedance (Z1–Z3) |
|

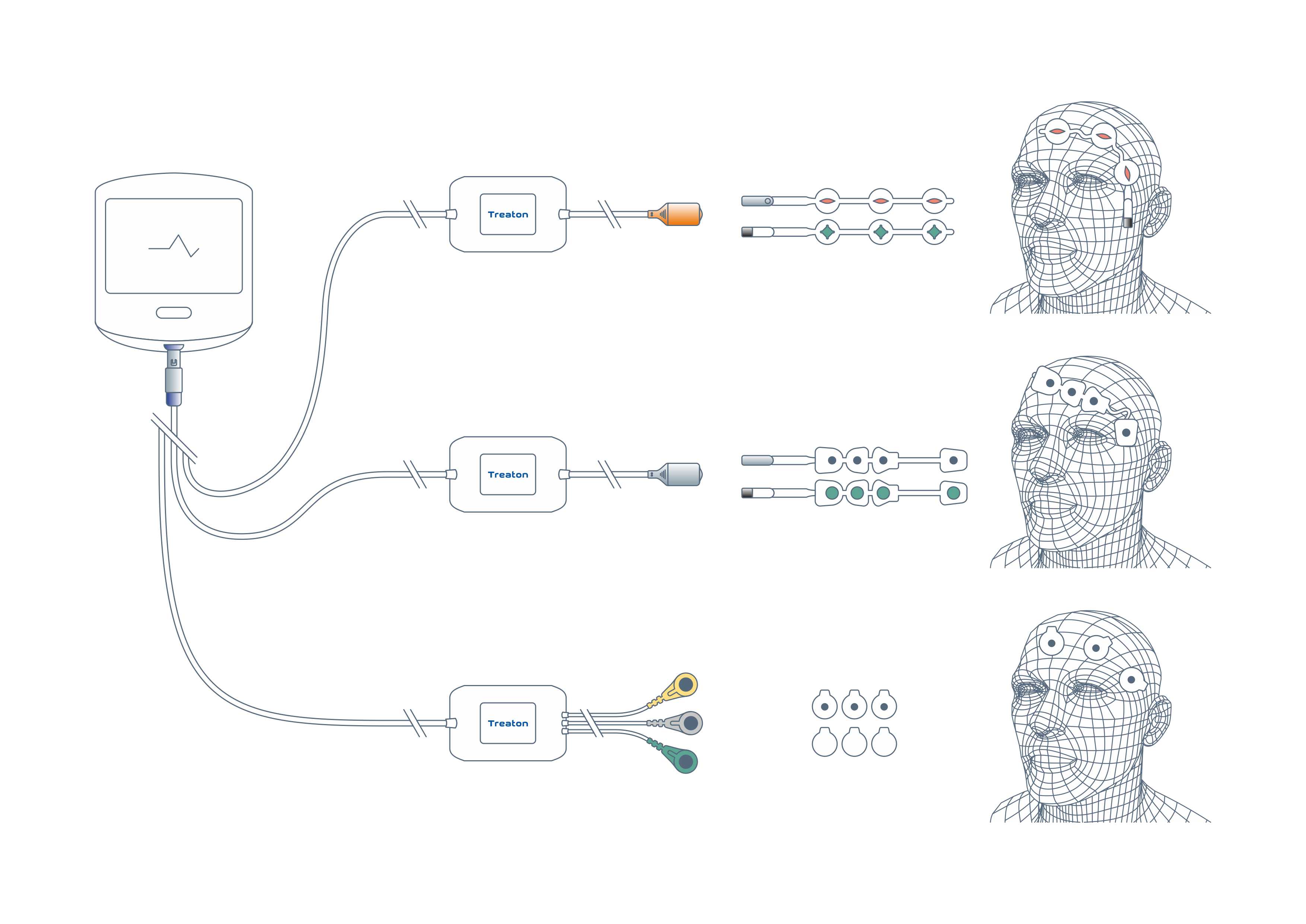

The recommended types of electrodes |
31.1245.21, 24 mm, Covidien LLC, USA; F9079/RU3236-100, FIAB SpA, Italy; White Sensor 40713, Ambu A/S, Denmark; G210C/F-150S, Nihon Kohden Corporation, Japan MedKer Tech, China |
|
Dimensions & Weght |
115x65x25 mm, 0.3 kg |
|
Power |
Voltage: 5.0 V±5% DC. Power consumption: 2 W |
|
Environment |
0–40°C, RH 40–80% (at air temperature 25°C), 600–800 mmHg |
|

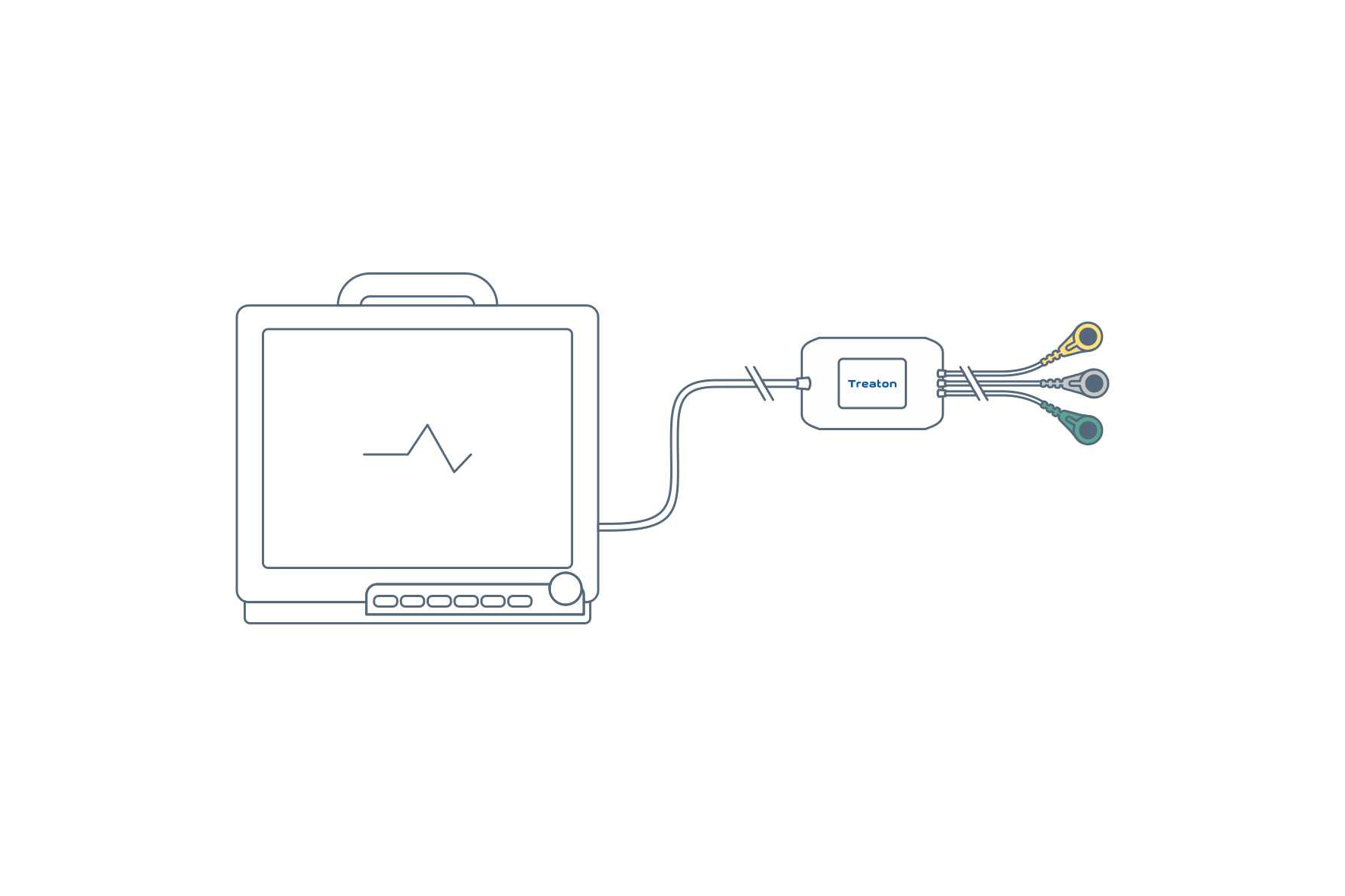

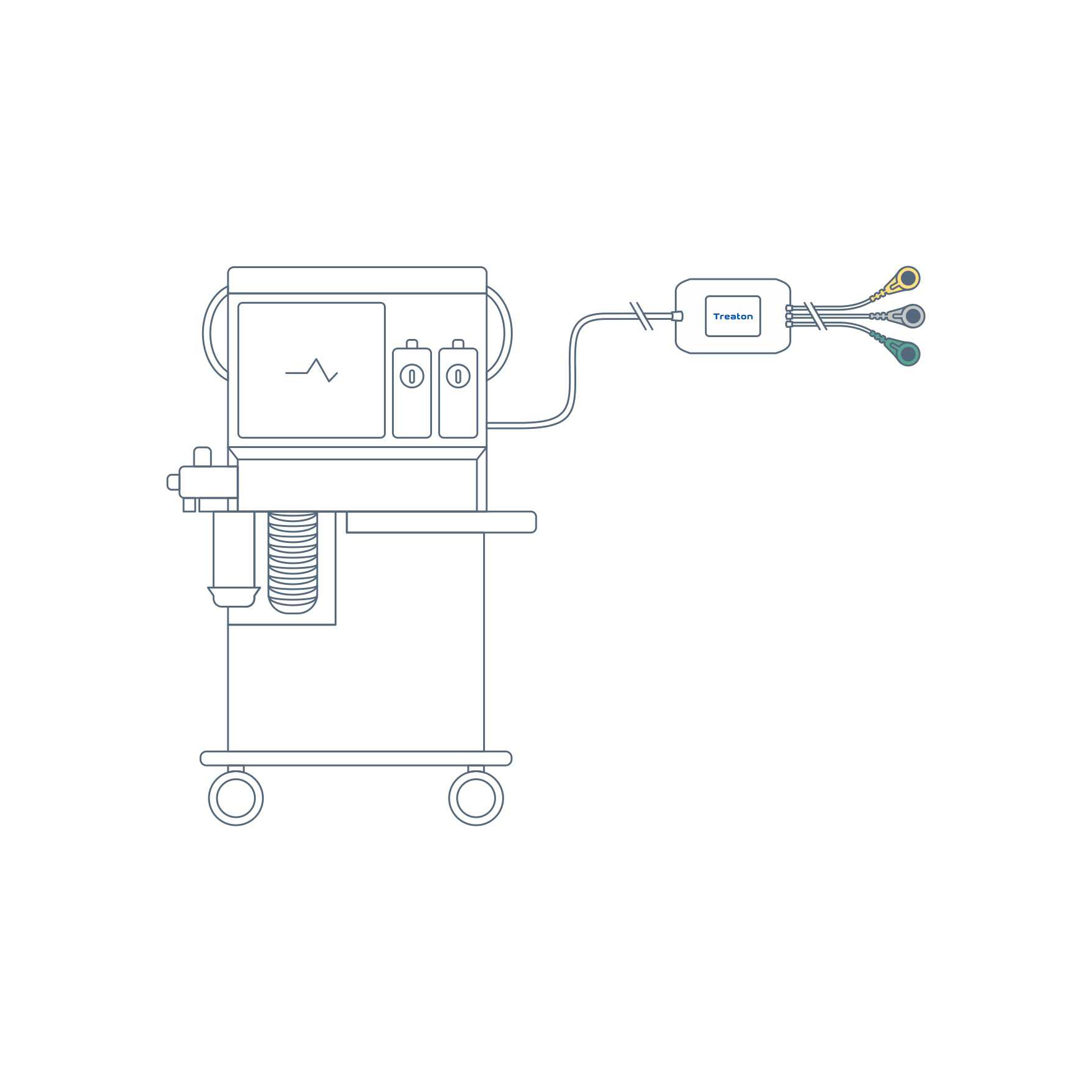

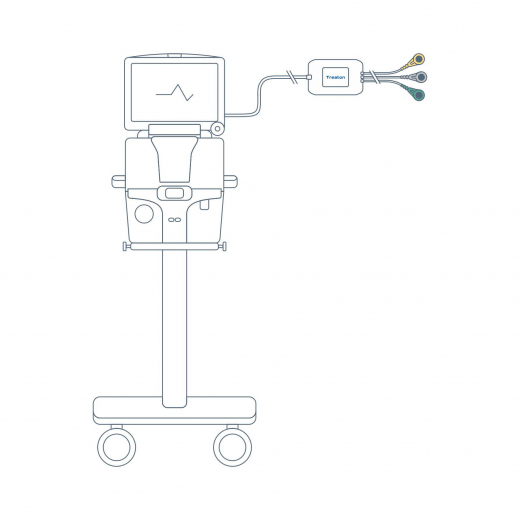

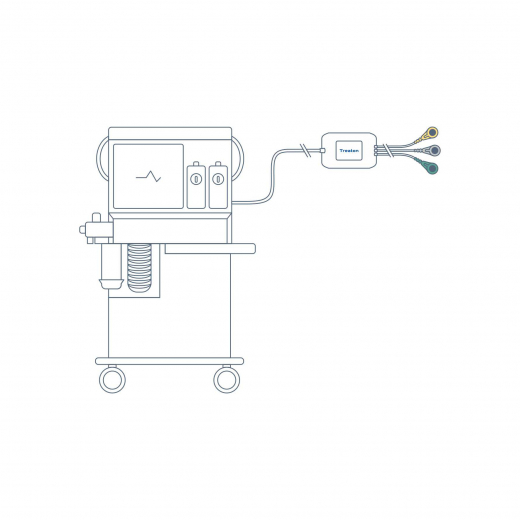

Integration |
UART interface, ODU connector |
Delivery kit
|

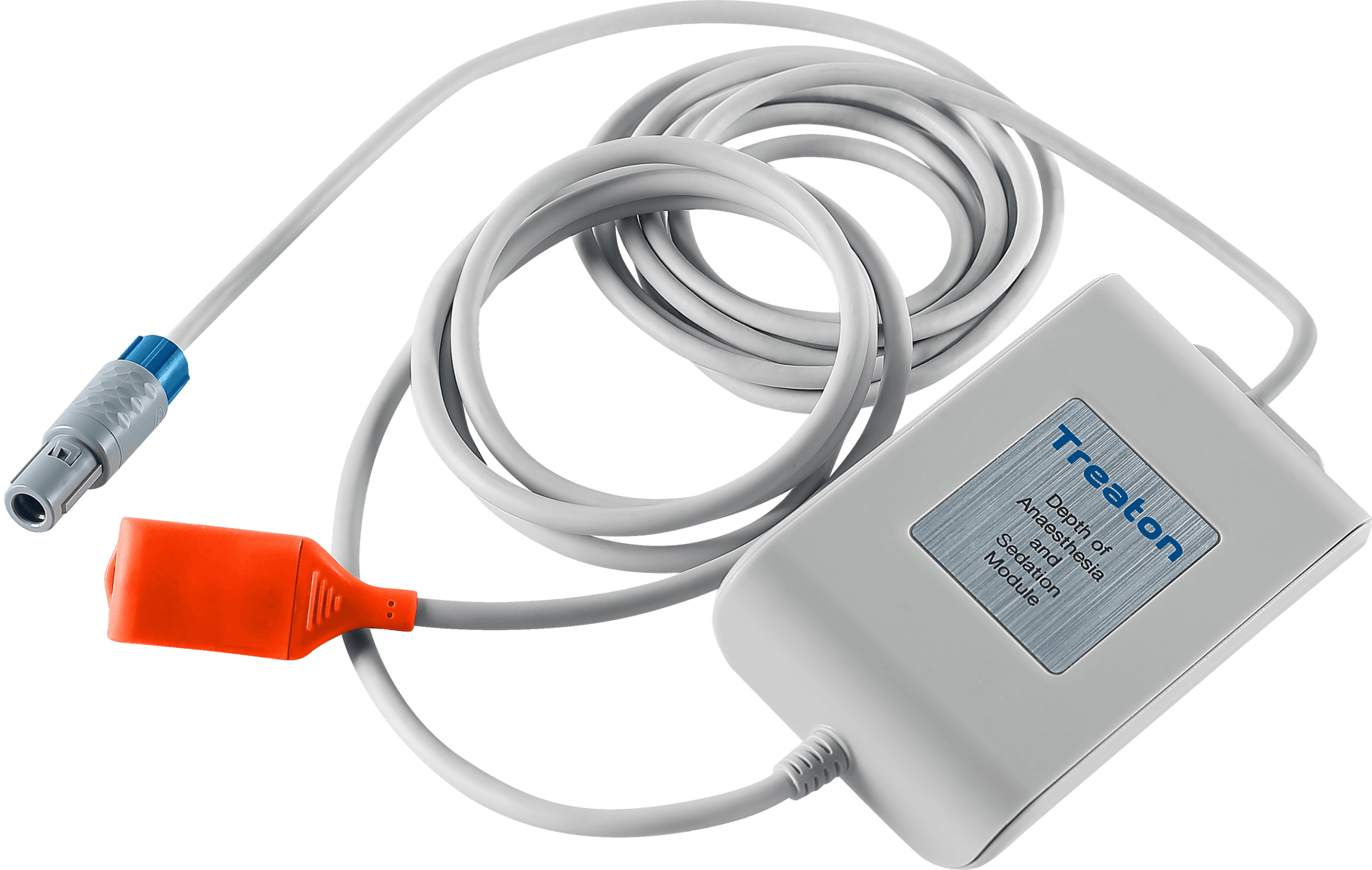

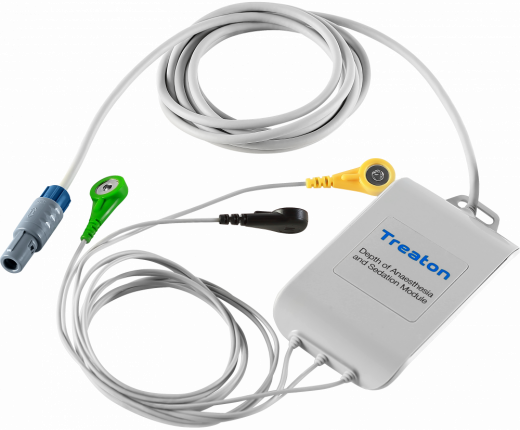

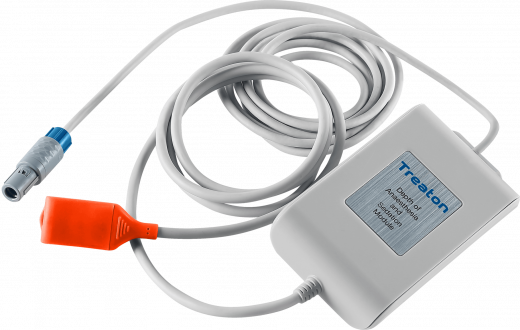

Depth of Anesthesia and Sedation Module MGA |
TESN. 626001 / TESN. 626002 (according to the module type) |
1 pcs. |
|
EEG Electrodes |
RE200046 / MK-01 / MK-03 (according to the module type) |
1 unit |
|
Development kit (UART-USB adapter with cable) |
TESN.706157-01 |
1 pcs.* optional upon request |
