Comprehensive Anesthetic Gas Monitoring — Simultaneously measures inhaled & exhaled concentrations of O2, CO2, and all major volatile agents (Iso, Sev, Des, Hal, N2O)
-
OEM-Optimized for Anesthesia Platforms — Designed for seamless integration into anesthesia machines, ventilators, and patient monitors
-
Maintenance-Free Operation — No routine calibration or servicing—reducing total cost of ownership and downtime
-
Rapid Response — 2.5-second response time and full CO2 accuracy in just 10 seconds enable real-time decision-making
Measured Parameters
- Concentration of anesthetic gas agents (Ax): Isoflurane (Iso), Desflurane (Des), Sevoflurane (Sev), Nitrous oxide (N2O), Enflurane (ENF) (option), Halotane (HAL) (option), on inspiration (FiAx) and expiration (EtAx).
- Concentration of CO2 on inspiration (FiCO2) and at the end of exhalation (EtCO2).
- Respiration rate (RR).
- Concentration of O2 (option) on inspiration (FiO2) and at the end of exhalation (EtO2)
Agent Measuring Ranges
|
Gas |
Measurement range, Vol % |
Accuracy |
|
Isoflurane (Iso) |
0–5 |
±(0.2% + 15% of gas level) |
|
Desflurane (Des) |
0–18 |
±(0.2% + 15% of gas level) |
|
Sevoflurane (Sev) |
0–8 |
±(0.2% + 15% of gas level) |
| Enflurane (ENF) (option) | 0 – 7 | ±(0.2% + 15% of gas level) |
|
Nitrous oxide (N2O)
|
0 – 100 | ±(2% + 8% of gas level) |
|
Halothane (Hal) (option) |
0–5 |
±0.2 |
|
CO₂ |
0–15 |
± (0.43% + 8% of gas level) |
|
O₂ (option) |
0–100 |
±(2.5 vol.% + 2.5 % of GAS LEVEL) |
Technical Specification
|
Technology |
Non-dispersive infrared (NDIR) |
|
Measured gases |
Anesthetic agents: Iso, Des, Sev, N2O, Enf (option), Hal (option), CO2, O2 (option) |
|
Measured parameters |
Inspired and expired gas concentrations of all gases; respiration rate; ambient pressure |
|
Patient age groups |
Adult, pediatric |
|
Self-diagnosis |
Available |
|
Warm-up time |
ISO accuracy within 45 sec. Full accuracy within 10 min CO2 channel 10 sec. |
|
Response time |
2.5 sec |
|
Resolution |
0.1 |
|
Gas sampling rate |
50–250 ml/min |
|
Respiration rate range |
0–160 breath per minute (BPM) |
|
Respiration rate accuracy |
± 1 breath |
|
Apnea detection range |
10–60 sec, default 20 sec |
|
Calibration |
No user calibration required. Supports automatic atmospheric pressure compensation |
|
Dimensions & Weight |
With housing: 150x95x60 mm. 0.5 kg Without housing: 117х44х70mm, 0.25 kg |
|
Power |
Voltage: 5 V ± 5% Power consumption: 4 W |
|
Environment/Protection |
Water and splash resistance: IP22 Operation: 10–35°C, RH 10–90% Storage: 5–40°C, RH <80% at 25°C, 390-900 mmHg Transportation: -50 to 50°C |
|
Integration |
Interface: CAN, RS232 Connector: Molex Micro Fit 3.0 Data output: FiCO2, FiO2, FiAx, EtCO2, EtO2, EtAx, Respiration rate |
|
Standards |
Developed in accordance with the requirements: EN 60601-1, IEC 60601-1-2, EN ISO 80601-2-55, RoHS |
Delivery kit
|

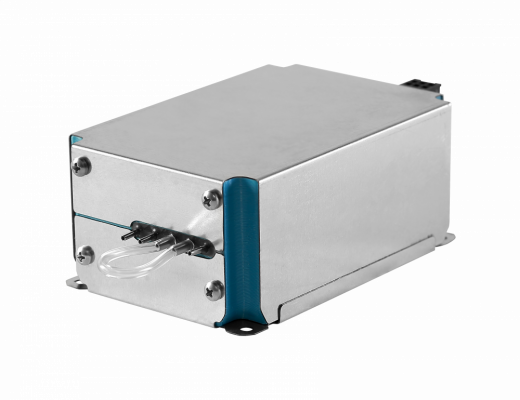

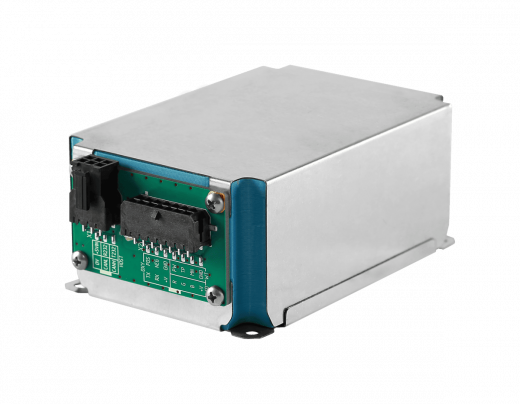

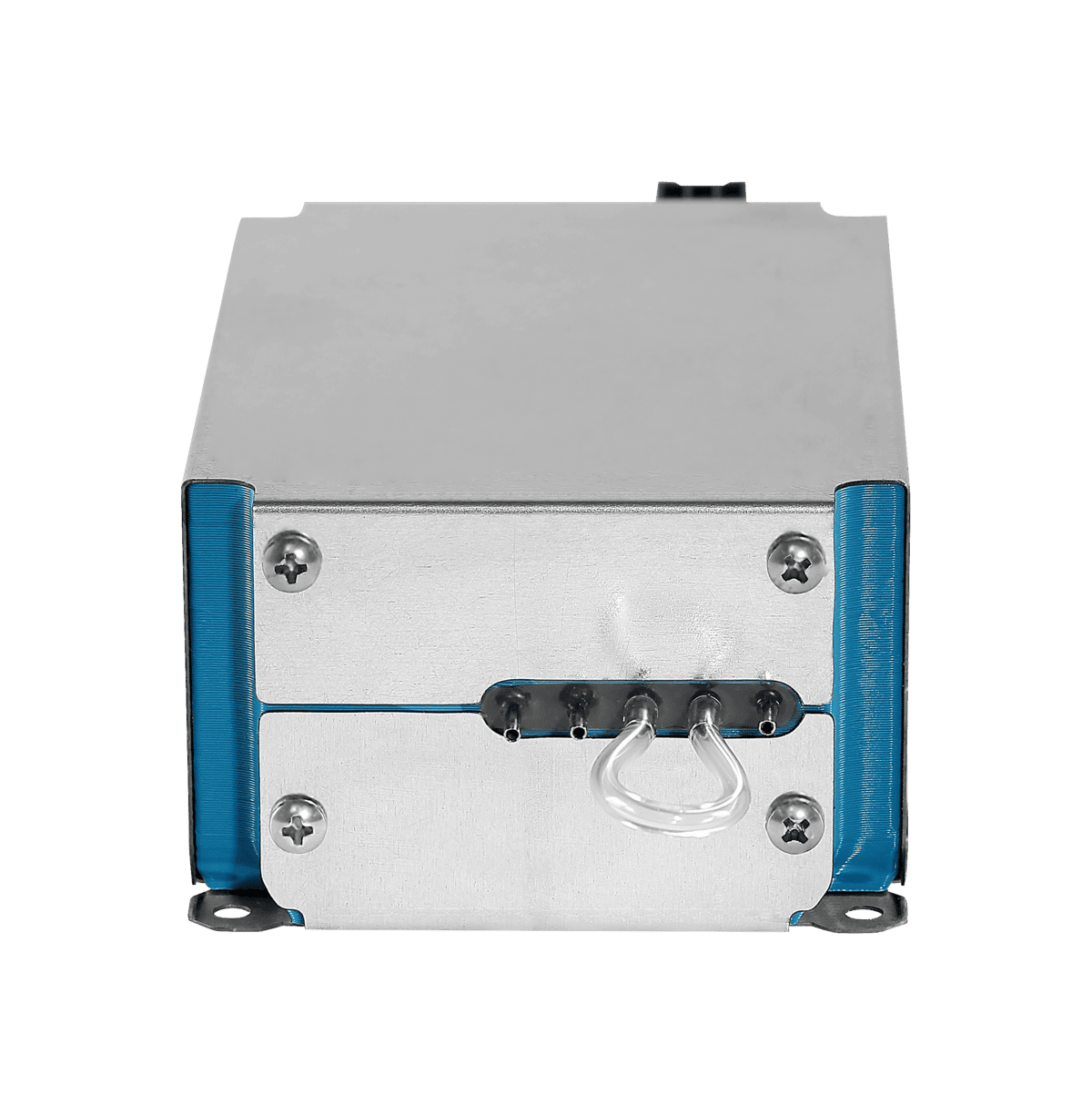

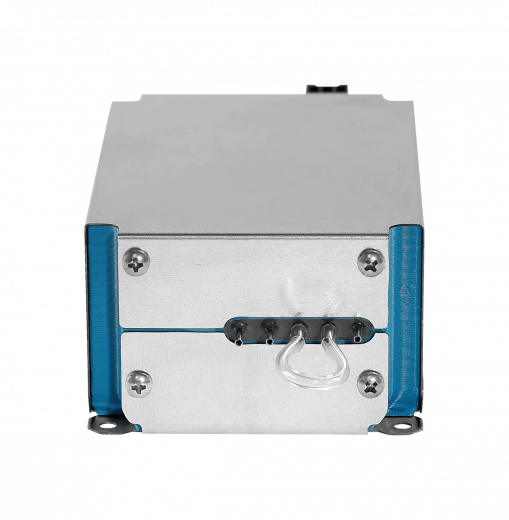

Multigas Module |
TESM.943129.001 |
1 pcs. |
|
Water trap |
60-1300-00 DRYLINE |
1 pcs. |
|
Sampling line |
010-700 Flexicare |
1 pcs. |
|
Connector |
15M-22M/15 REF2713 or 15M-22M/15 010-638 Flexicare |
1 pcs. |
|
Interface cable |
TESM.704021-03 |
1 pcs. |
|
Developer kit |
On request ET555494 |
1 pcs. |
