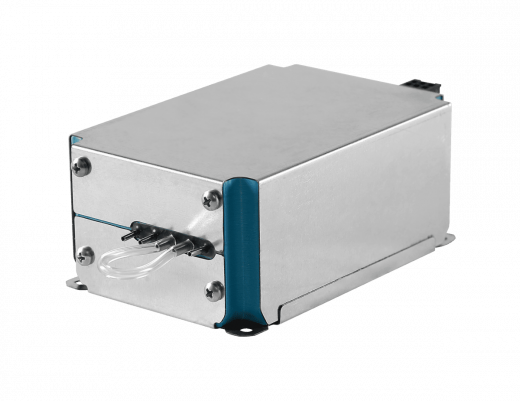

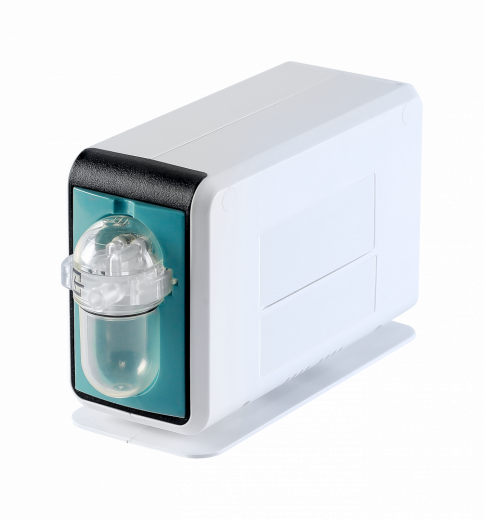

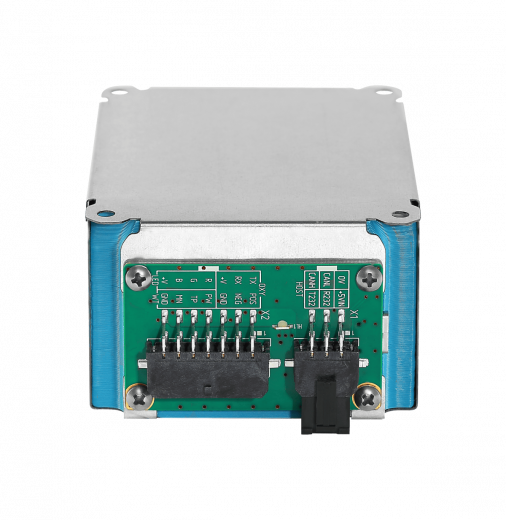

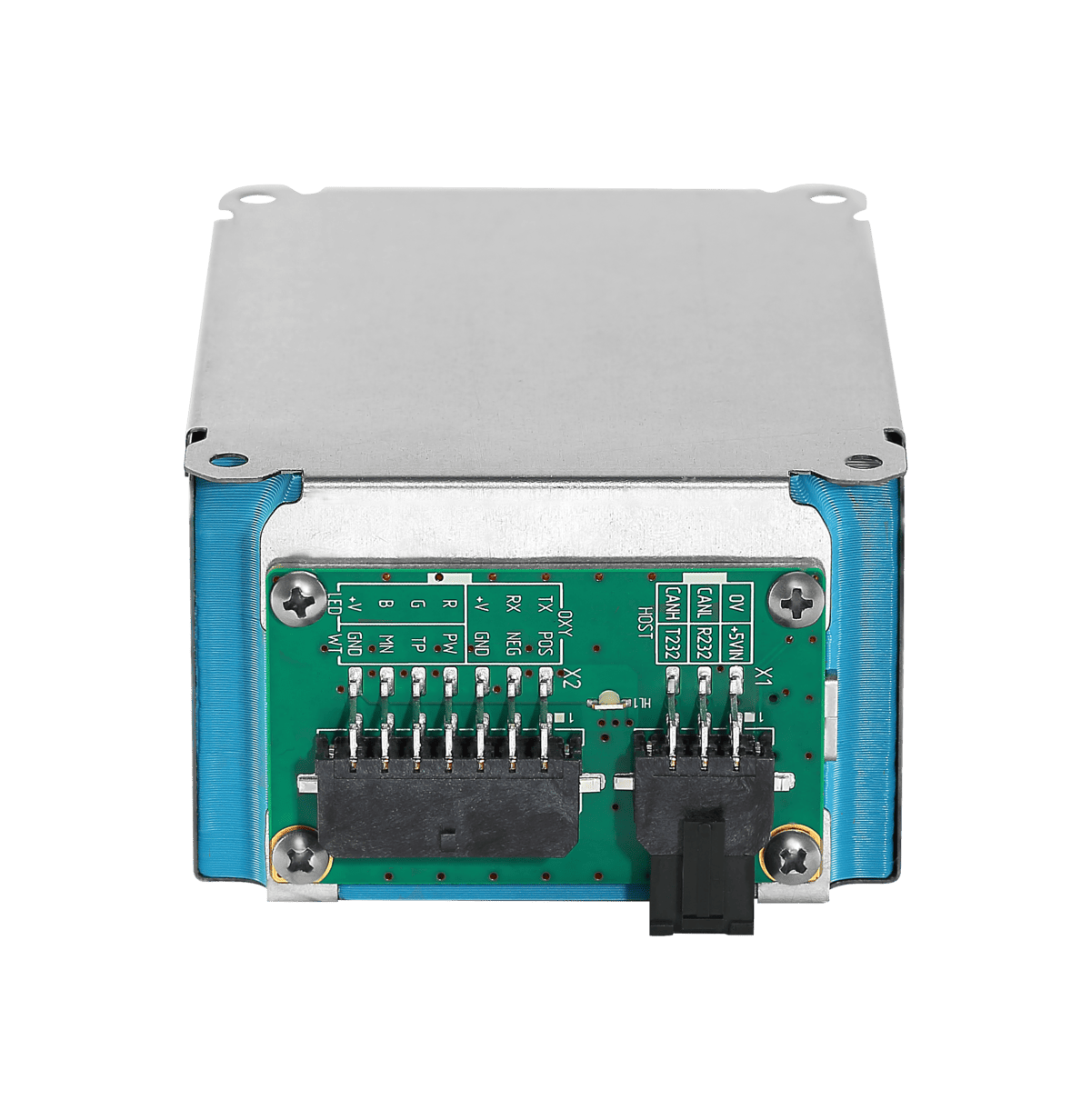

Sidestream CO2 Module is intended for continuous noninvasive monitoring of inspired CO2 (FiCO2) and end tidal CO2 (EtCO2), respiration rate (RR) and apnea
-
Supports intubation confirmation, weaning, CPR effectiveness, leak detection, and hypermetabolic state monitoring
-
No calibration needed, module is ready to deliver accurate readings immediately after warm-up
-
Adjustable flow rate (50–250 ml/min) with ±10% accuracy ensures consistent waveform quality
-
Stable performance even in the presence of anesthetic vapors, humidity, and other gases
Technical Specification
|
Operation principle |
Non-dispersive infrared spectrophotometry (NDIR) |
|
Initialization time |
10 s |
|
Time of setting the operating mode |
120 s (at ambient temperature 25°С) |
|
Gas sampling rate accuracy |
50–250 ml/min ±10 ml/min in absolute terms or ±10% in relative one (the biggest from the values) |
|
CO₂ concentration measurement range
CO₂ measurement accuracy |
0–20 vol.% (resolution 0.1) 0–150 mmHg (resolution 0.1) ±(0.2 vol.% + 0.02 · Kmeas) or ±(1.5 mmHg + 0.02 · Kmeas) |
|
Measurements drift |
±(0.2 vol.% + 0.02 · Kmeas) or ±(1.5 mmHg + 0.02 · Kmeas) |
|
Response time |
~3 s |
|
Rise time |
0.2 s |
|
Influence of gas impurities and vapors |
±(0.43 vol.% + 0.08 · Kmeas) |
|
Respiratory rate measurement range Respiratory rate measurement accuracy |
3–160 breath per minute (BPM) ±2 breath per minute (BPM) |
|
Power |
Voltage: 5.0 V±5% Capacity: 1.5 W, maximum 4 W during warming |
|
Weight Dimensions(without cable), width x height x depth Without housing |
0.5 kg 58х92х146 mm 117х44х70mm, 0.25 kg |
|
Connector |
Lemo Redel / ODU |
|
Interface |
RS-232 |
Delivery kit
|

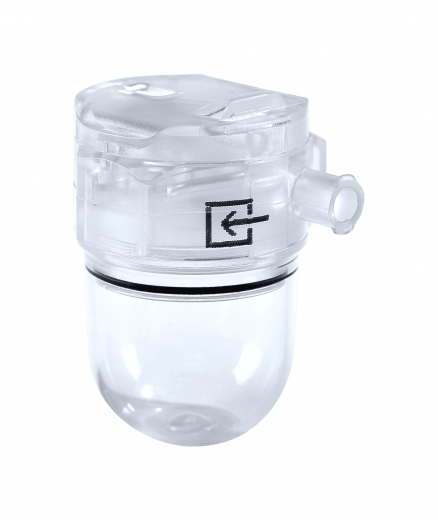

Sidestream CO₂ Sensor |
TESN.943129.008-01 |
1 pcs. |
|
Connector |
15M-22M/15 REF2713 or 15M-22M/15 010-638 Flexicare |
* |
|
Monitoring line |
TESN.943129.008-01 |
1 pcs. |
|

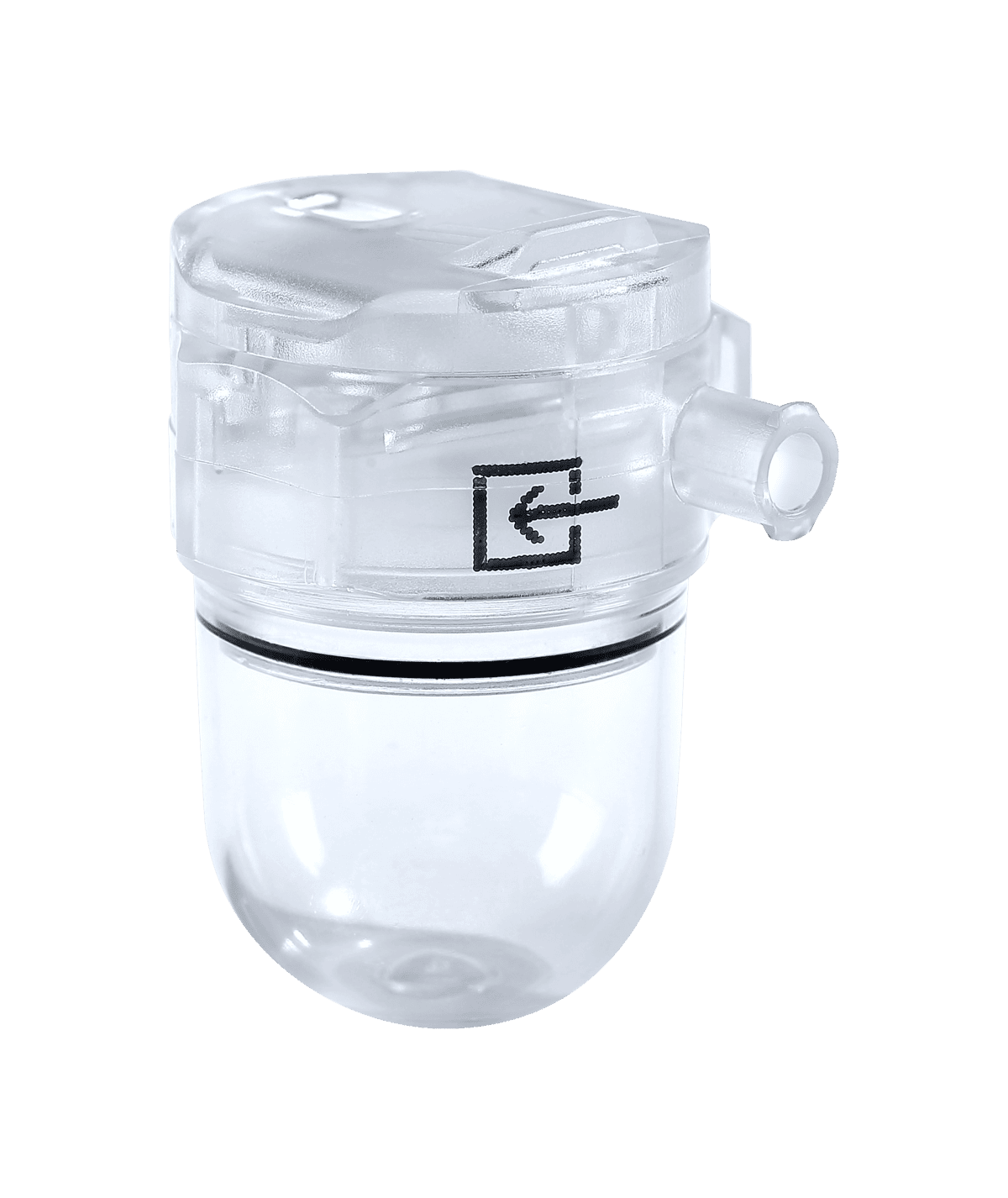

Water trap |
60-1300-00 DRYLINE |
1 pcs. |
|
Interface cable |
TESM.704021-03 |
1 pcs. |
*The items and quantity of the accessories and documents are specified at the order.
