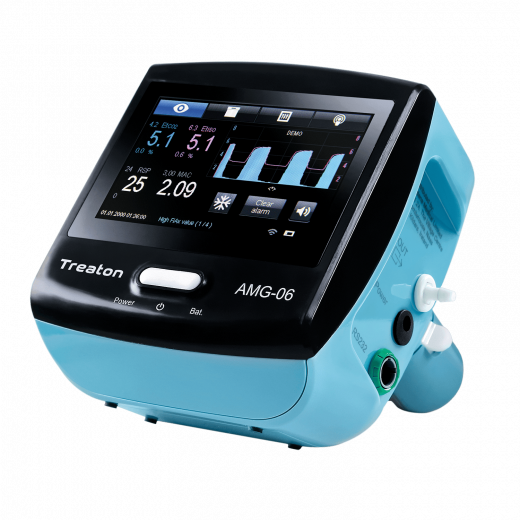

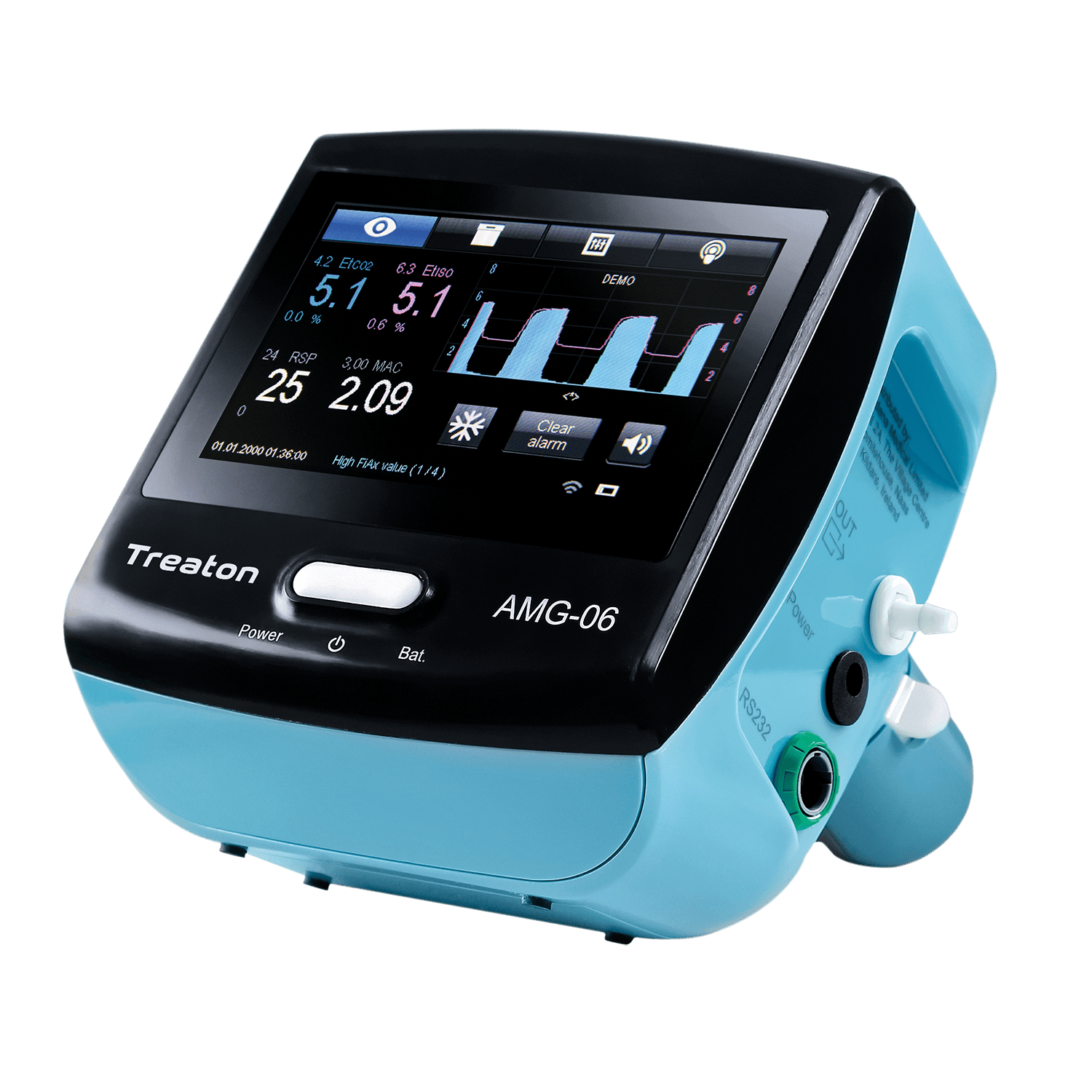

Multigas Analyzer AMG-06 is intended for continuous non-invasive sidestream monitoring of СО2 and anesthetics concentration in inspired and expired gases. The device also determines respiratory rate (RSP), apnea, MAC index and measures atmospheric pressure under the conditions of operation rooms and wards when providing anesthetic support.

Measurement method - Non-invasive sidestream monitoring, minimal gas sampling flow rate 70 ml/min

Application: anesthesiology, intensive care, prolonged sedation, resuscitation.
Patient groups: adults, children, neonates.

Measured gases:

Isoflurane (Iso)
Sevoflurane (Sev)
Desflurane (Des)
Halothane (Hal)
Enflurane (Enf)
Nitrous oxide (N₂O)
Inspiratory and Expiratory carbon dioxide (СО₂)

Details

Download

Advantages

Reliable and accurate	Technology based on the infrared method of measuring, enables to measure anesthetics and CO₂ concentration precise and fast due to an in-house high-precision sensor

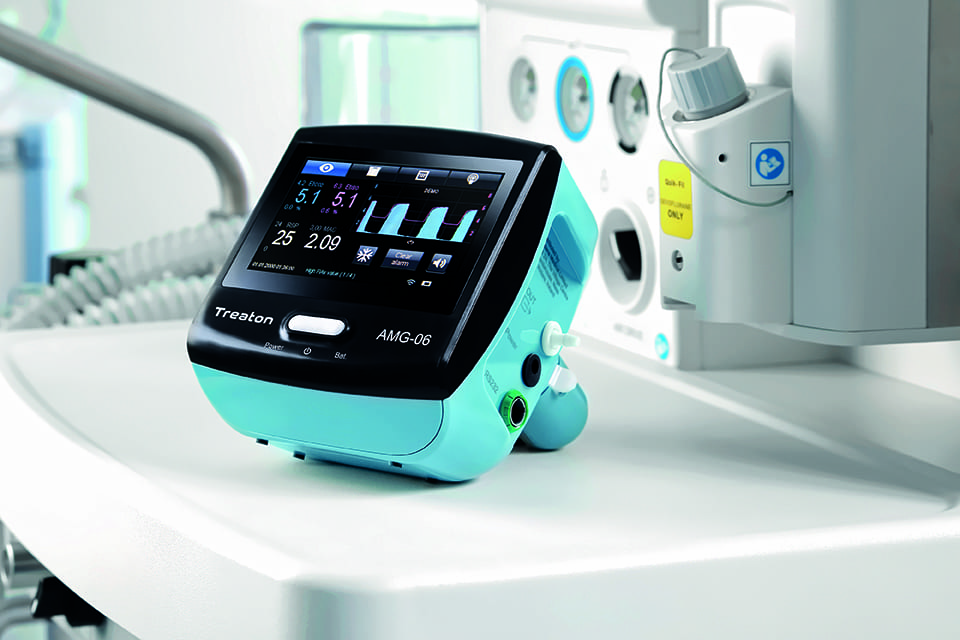

Ergonomic design	Light weight, compact, can be used during intrahospital patient transportation Fits to any working environment, can be fixed on any surface due to its universal mounting system
Easy to use	Intuitive interface, sensitive touch screen Minimum set of the most necessary functions Can be used with high-frequency electrosurgical devices Works with an external information system, possess Wi-Fi function Maintenance-free
Safety for a patient	Suitable for low-flow anesthesia Manual selection of the anesthetic type, automatic detection of the incorrect choice Displaying of the real time gas concentration Automatic detection of installed water trap (adult or neonate version) Safe use of consumables: special valve prevents the reverse flow of gas through the sampling tube

Technical specification

Patient groups	All patient groups

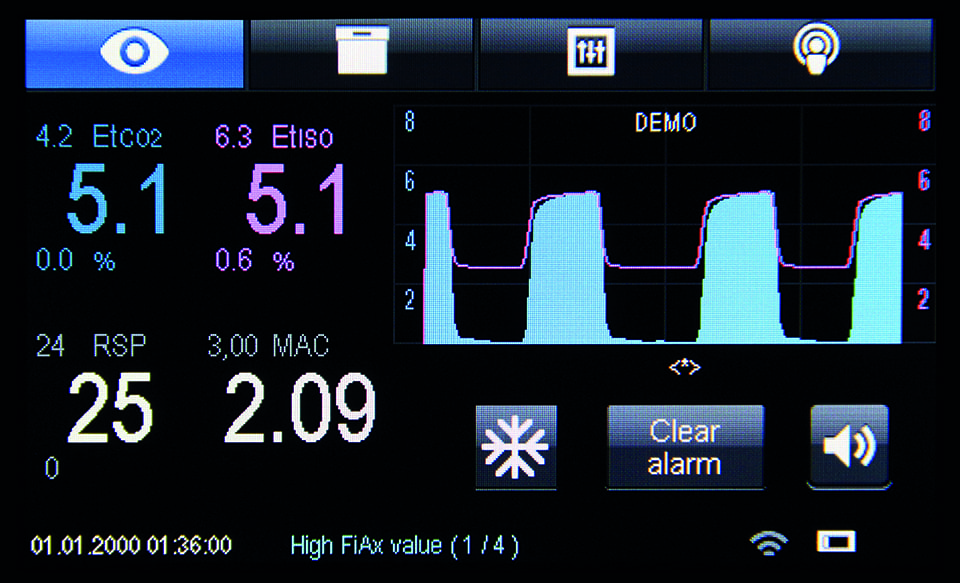

Display	Touch screen TFT-display, 5”
Dimensions	170×155×145mm
Weight	2.5 kg maximum
Power supply	100-240 V, 50/60 Hz Built-in battery up to 2h of operation

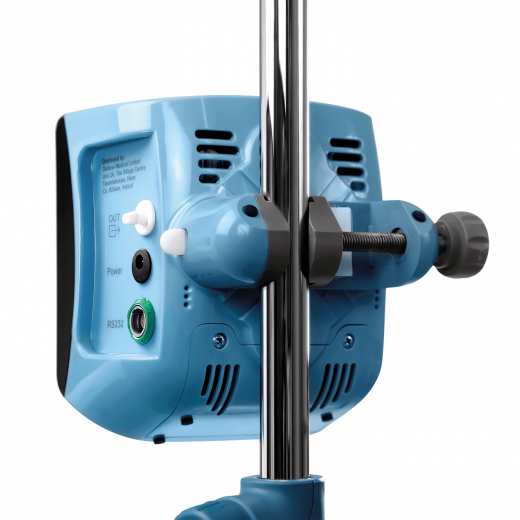

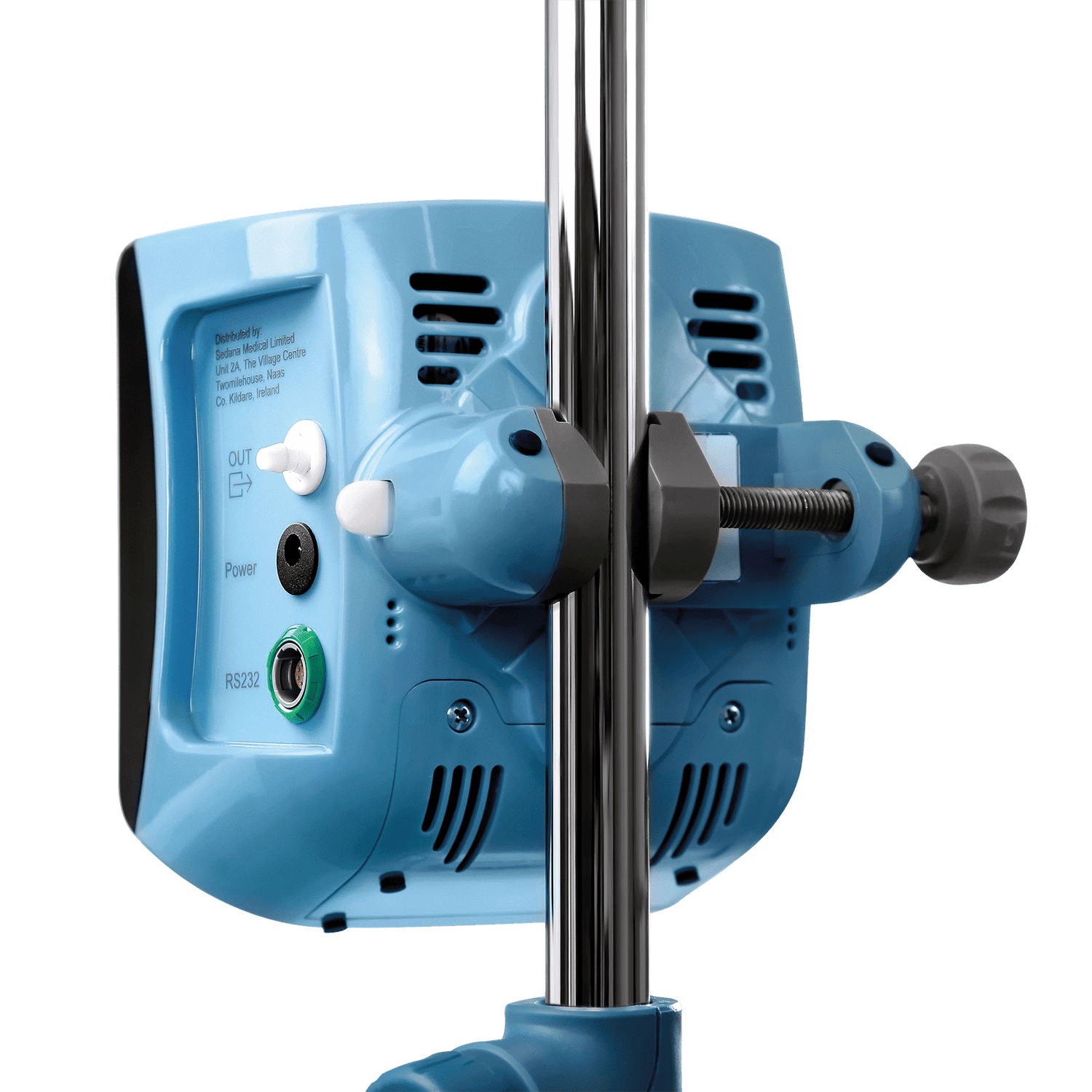

Mounting	Can be suspended at any surface, 360° rotated clamp
Measurement method	Non-invasive, sidestream. Non-dispersive infrared (NDIR)
Measured parameters	Inspiratory and Expiratory СО₂ and anesthetic Respiratory rate (RSP) Apnea Minimum alveolar concentration (MAC index)
Measurement range	Isoflurane (Iso) Sevoflurane (Sev) Desflurane (Des) Halothane (Hal) Enflurane (Enf) Nitrous oxide (N₂O) Carbon dioxide (CO₂)	0–5% (resolution — 0.1) 0–7% (resolution — 0.1) 0–17% (resolution — 0.1) 0–5% (resolution — 0.1) 0–7% (resolution — 0.1) 0–100% (resolution — 0.1) 0–15% (resolution — 0.1)
Gas sampling flow rate range	with accuracy of gas flow rate ±10 ml/min maximum or ±10 % (whichever is greater)	70 – 200 ml/min
Respiration rate measurement range	5 - 160 bpm
Alarms	Visual and audible. Three levels of priority, physiological and technical alarms and events
Trends	72 hours
Patient Information record	Name, age, gender, weight, height, date of admission, diagnosis at admission, clinical diagnosis, notes

Start-up delivery set / Quantity, pcs.

Multigas Analyzer AMG-06	1
Power adapter	1
DRYLINE II Water Trap, adult	1
Sampling tube, adult	1
DRYLINE II Water Trap, neonate	Option
Sampling tube, neonate	Option
Exhaust gas tube	1
