—Extended Respiratory Monitoring

Extended Respiratory Monitoring

13 January 2025
Extended respiratory monitoring allows to set comfortable and safe ventilation parameters in accordance with the respiratory needs of the patient.
Extended respiratory monitoring includes

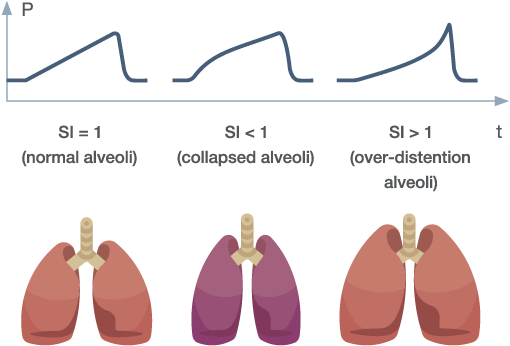

Stress index is an indicator of the correct choice of PEEP and the inspiration volume Vt. Its deviation from “1” shows non-optimal choice of ventilation parameters.


extended respiratory monitoring 01.png

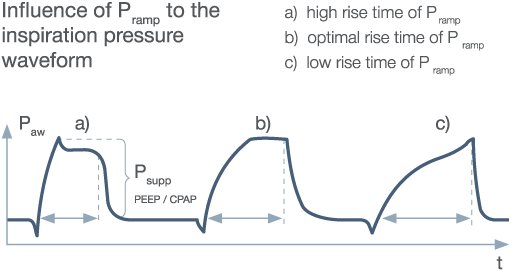

RSBI (rapid shallow breathing index) indicates the adequacy of spontaneous ventilation under pressure support (CPAP with PS) and is used to assess patient‘s readiness for weaning from respiratory support. AutoPEEP monitoring. In some cases, the selection of parameters for effective and safe ventilation without AutoPEEP monitoring is not possible, e.g. for patients with bronchial obstruction and an increased time constant. Pramp — rate of inspiratory pressure rise. Setting up Pramp allows adapting the device to the respiratory needs of the patient.


extended respiratory monitoring 02.png
